2019 Charger Grille install

[vortecd]

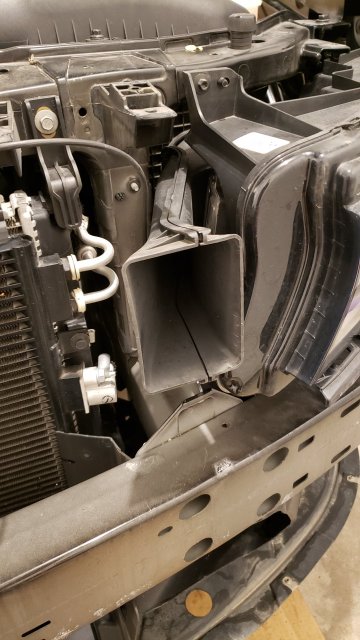

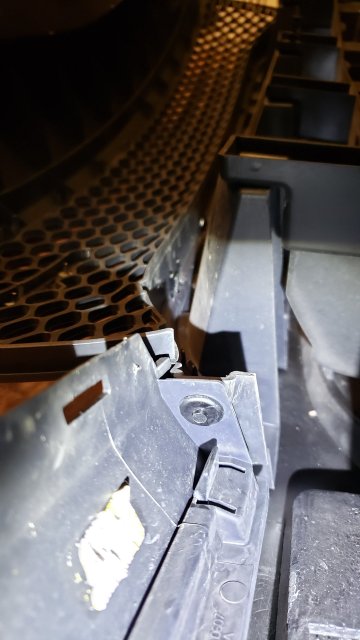

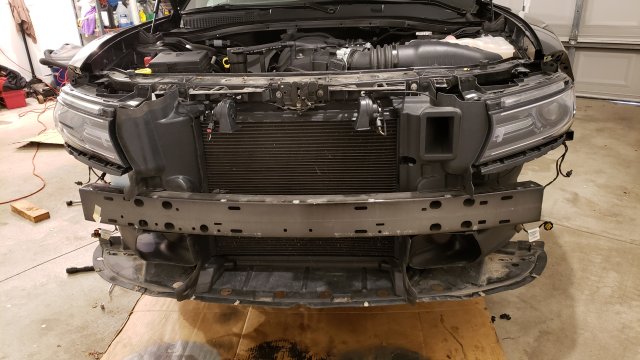

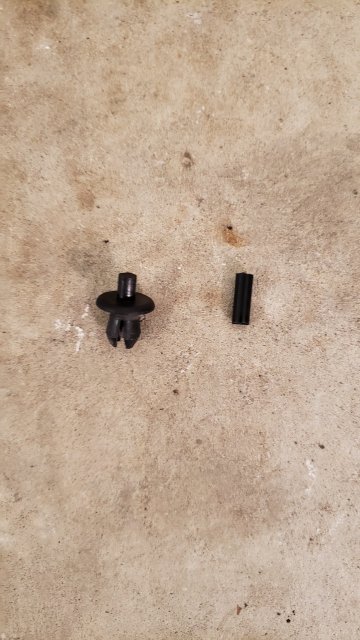

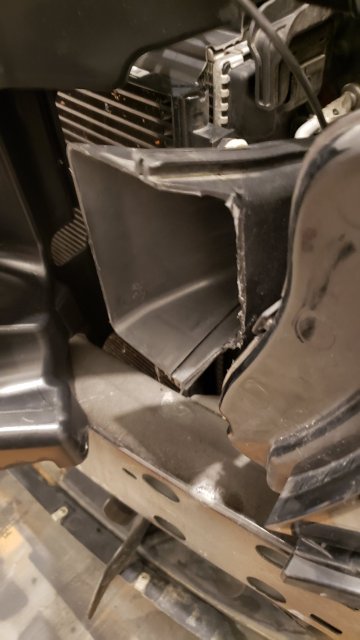

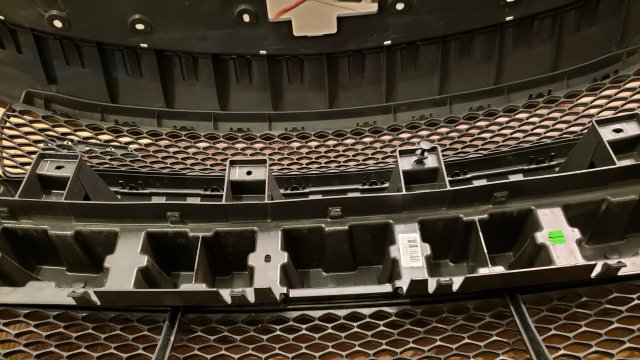

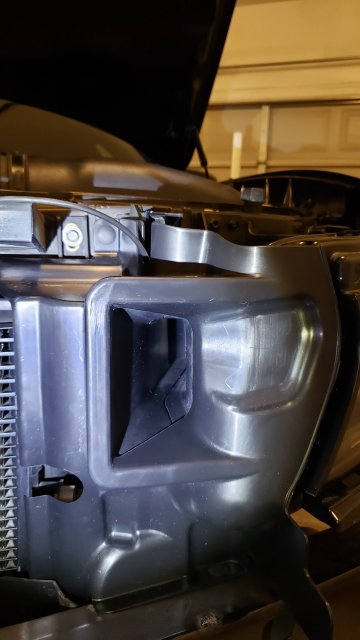

I did this write up awhile back and thought I would move it here. There are videos on how to remove the front so I'm not going to get into that. It took a little over 3 hours. The lower grille is bolted in so it went pretty good. The upper grille has tabs holding it on so it takes a bit to get each one unattached to get it off. There are also 6 push pins holding it on. There is a different kind of push pin on the lower part on each side. At first I thought it was a small bolt but there is a round plastic pin that I had to use a punch to hammer it out. Can't say I have ever ran across them before. I also had to cut a small part off my air inlet so the new radiator shield would fit. Using a cutting wheel it took all of 1 minute to trim it.



[vortecd]

Total cost through Steve White was just under $200. I already had the air inlet so that dropped the price from someone that would need it. Here are some of the prices from Steve White

A couple of links with part packages

2019 Dodge Charger SRT Scat Pack Daytona Hellcat Ram Air Box & Tube Shield OEM (SWMHCBOXLD) | Steve White Parts

2019 Dodge Charger SRT Scat Pack Daytona Upper Grille with Bezels Dual Inlets OE (SWMSRTGRILLE) | Steve White Parts

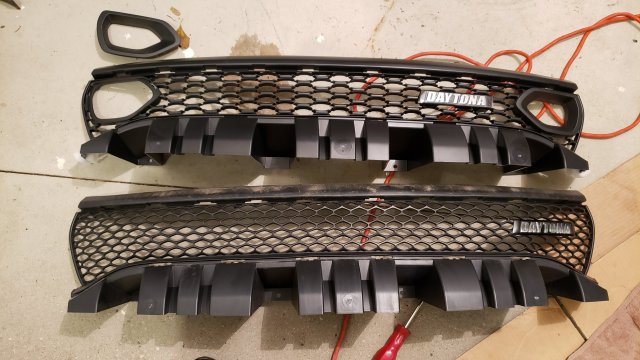

2019 Charger SRT Grille:

Grille- 68417502AA $51.33
Lower Grille W/O adaptive cruise control- 68394592AA $45.78
Lower Grille With adaptive cruise control- 68394591AA $46.37
Bezel Upper Grille Right side- 68417504AA $13.75
Bezel Upper Grille Left side- 68417505AA $13.75
Radiator left side shield Hellcat- 68394595AA $9.44
Duct-Air Cleaner Hellcat- 68424623AA $60.89
Lower Bezel Grille Right side- 68417498AA
Lower Bezel Grille Left side- 68417499AA
Nameplate Daytona- 68420463AB $44.84



[Plasticman]

I just completed this mod this weekend.

Rob



[JamesU]

It looks like the lower bezel grille left and right parts might have changed part numbers:

68417499AA / 68417498AA

https://www.stevewhiteparts.com/ste...o-mopar-oem-68417499aa-68417498aa?parent=1003

James



[vortecd]

I search the part numbers I had and found nothing so I updated the list with the new ones
Thanks
